Ola

Evolutionary Revolutionary

Ola

Evolutionary Revolutionary

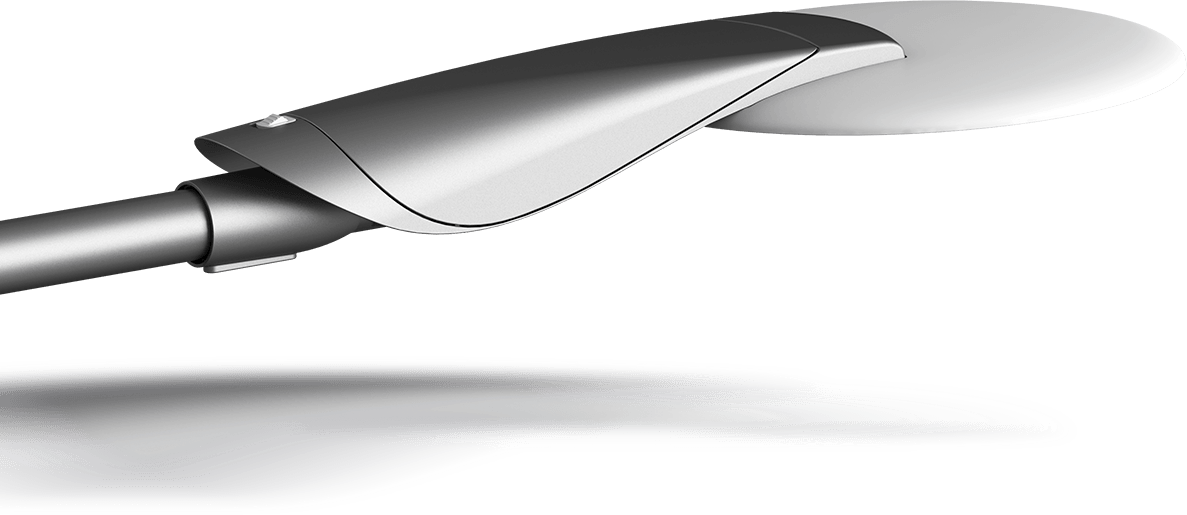

Evolutionary and Revolutionary, modular construction,
multiple solutions, customizable lighting.

An evolutionary design, based on the combination of two complementary technical modules. This product architecture, thanks to the interchangeability of the optical module, allows a wide variety of solutions adapted to the lighting needs of any type of project. The choice of different geometries of the optical module makes it possible to better match the character of urban spaces. A soft and discreet graphic signature inaugurating an inspiring and highly efficient product typology, at the cutting edge of lighting technology.

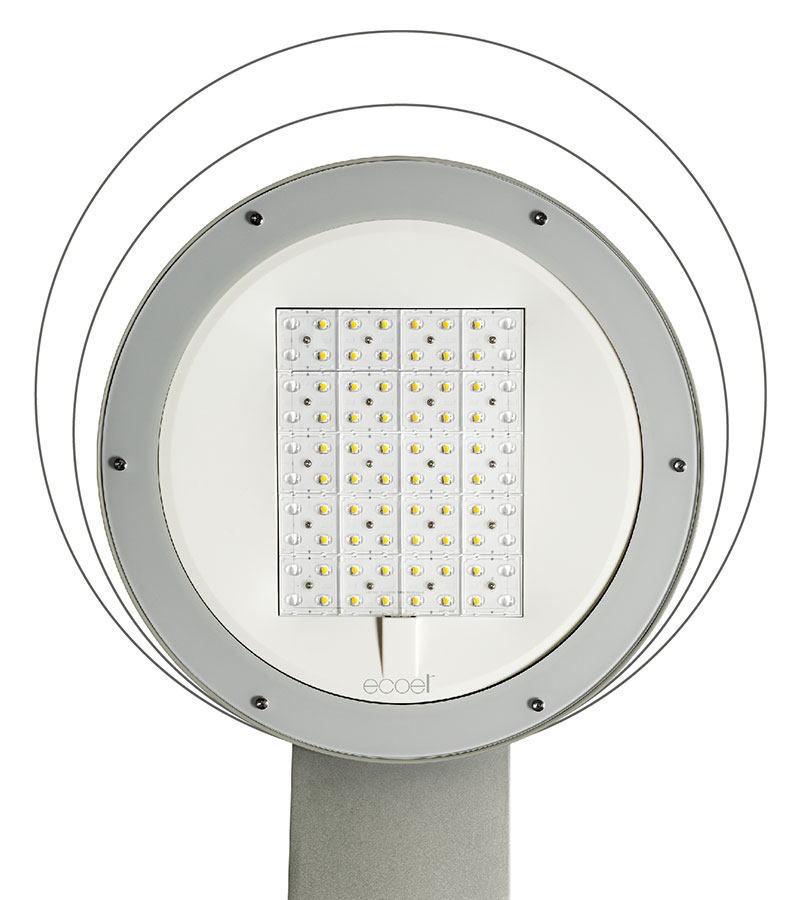

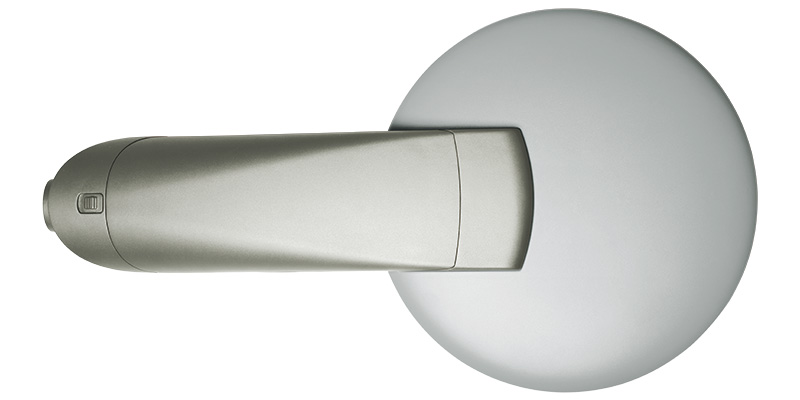

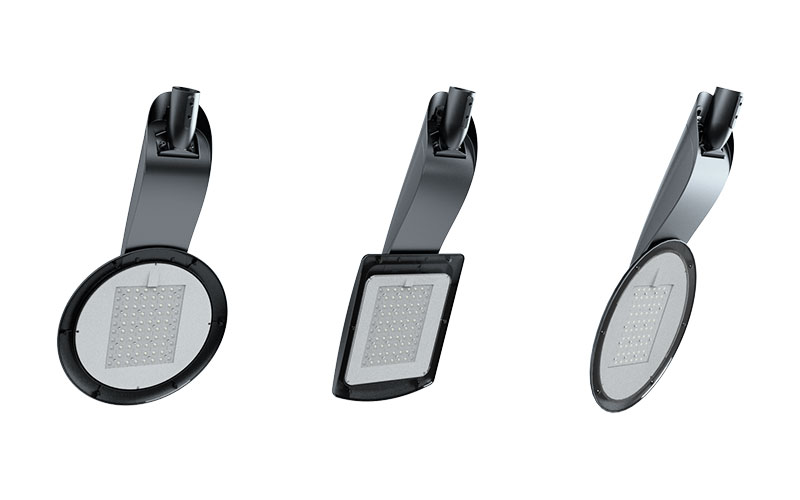

OlaRound

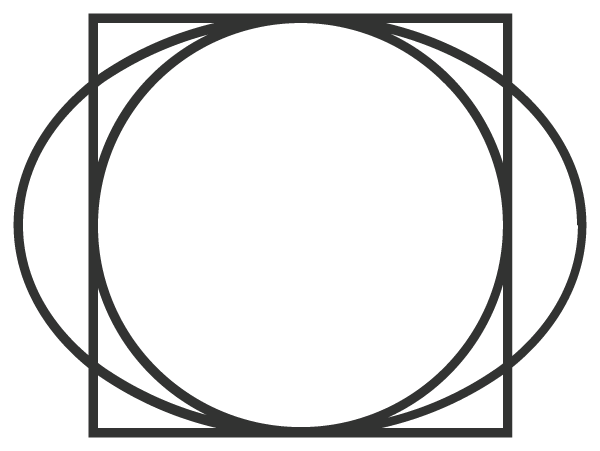

Three sizes of optical module

Small, medium, large.
From 6 to 12 meters hight.
Modular high transmittance lens is adopted to facilitate modular upgrade and improve versatility.

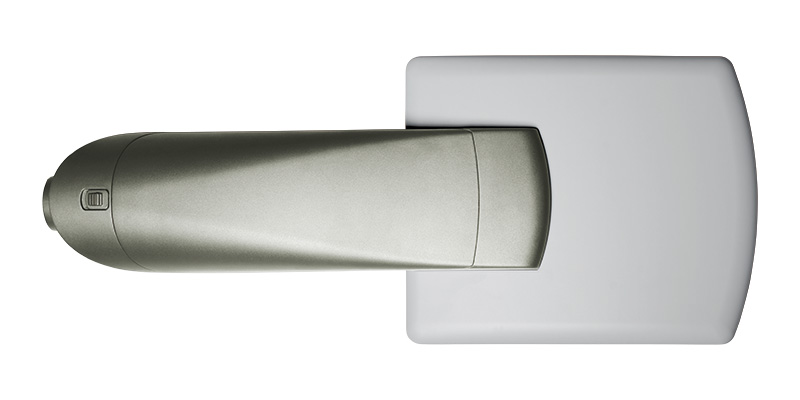

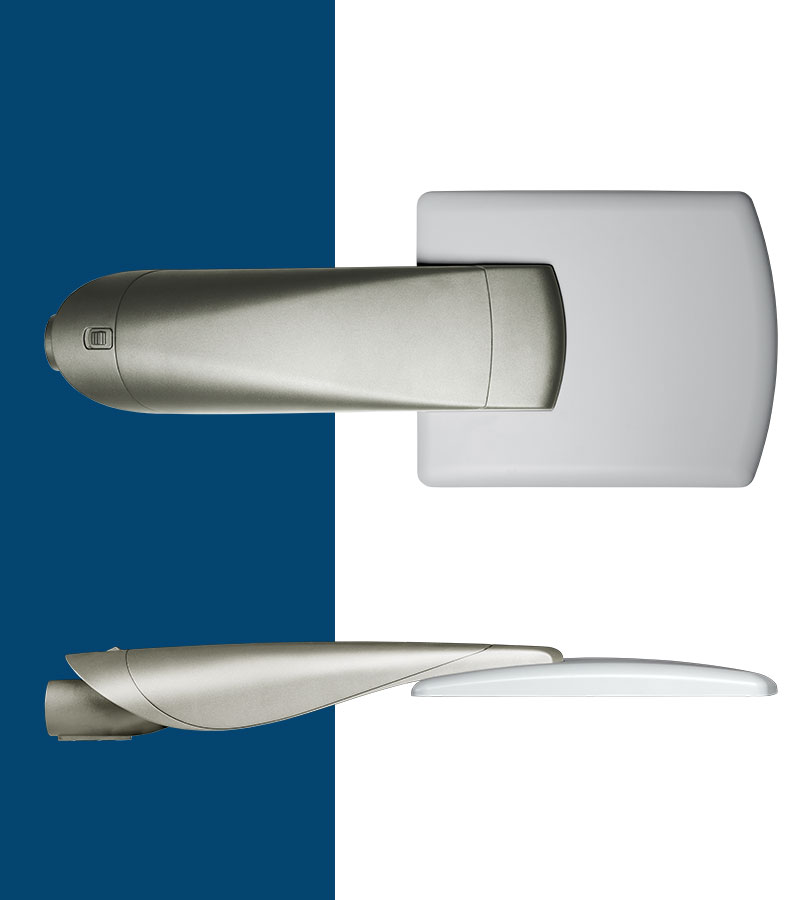

OlaRectangle

Three sizes of optical module

Small, medium, large.
From 6 to 12 meters hight.
Modular high transmittance lens is adopted to facilitate modular upgrade and improve versatility.

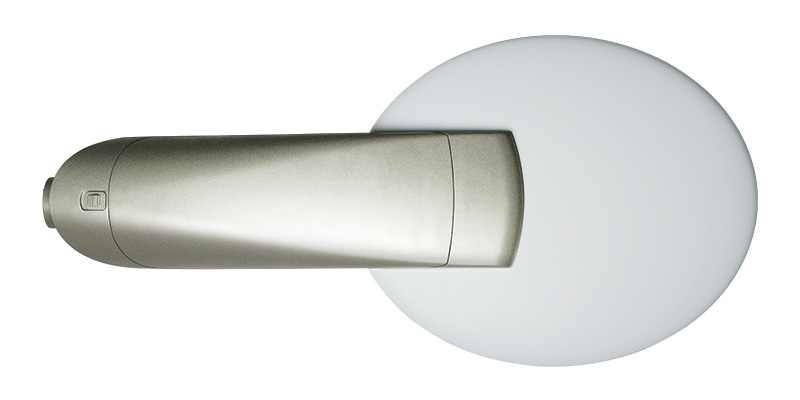

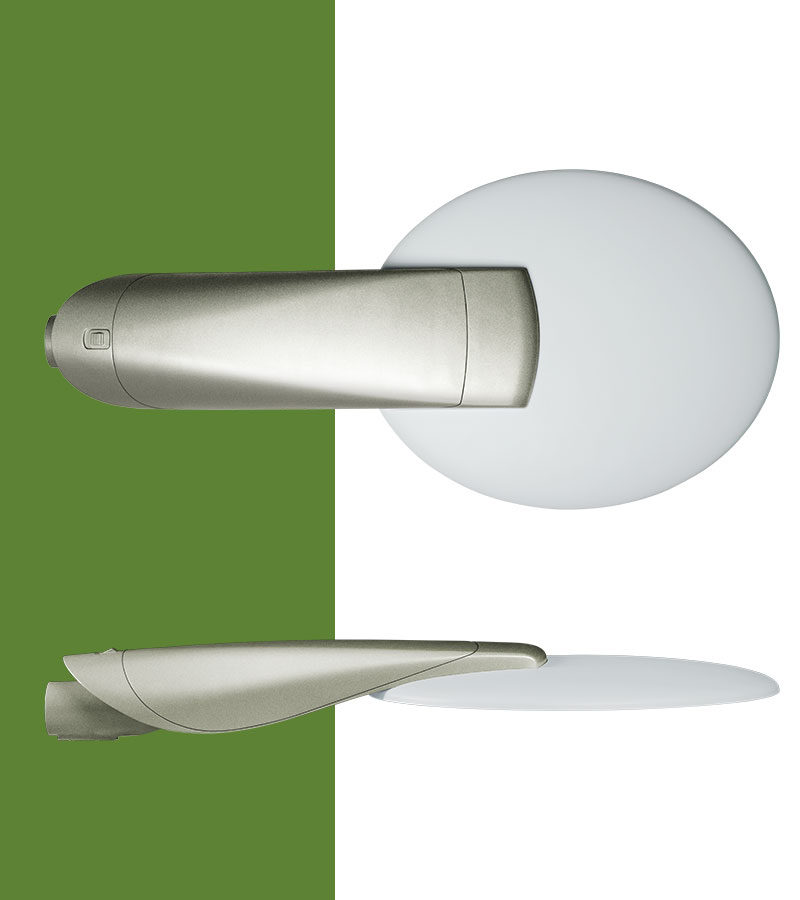

OlaOval

Three sizes of optical module

Small, medium, large.
From 6 to 12 meters hight.
Modular high transmittance lens is adopted to facilitate modular upgrade and improve versatility.

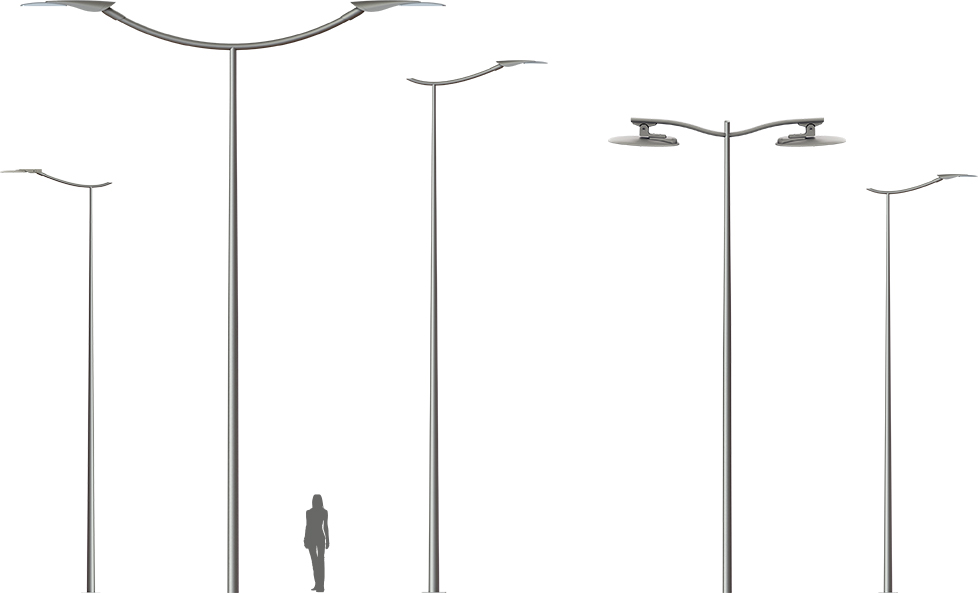

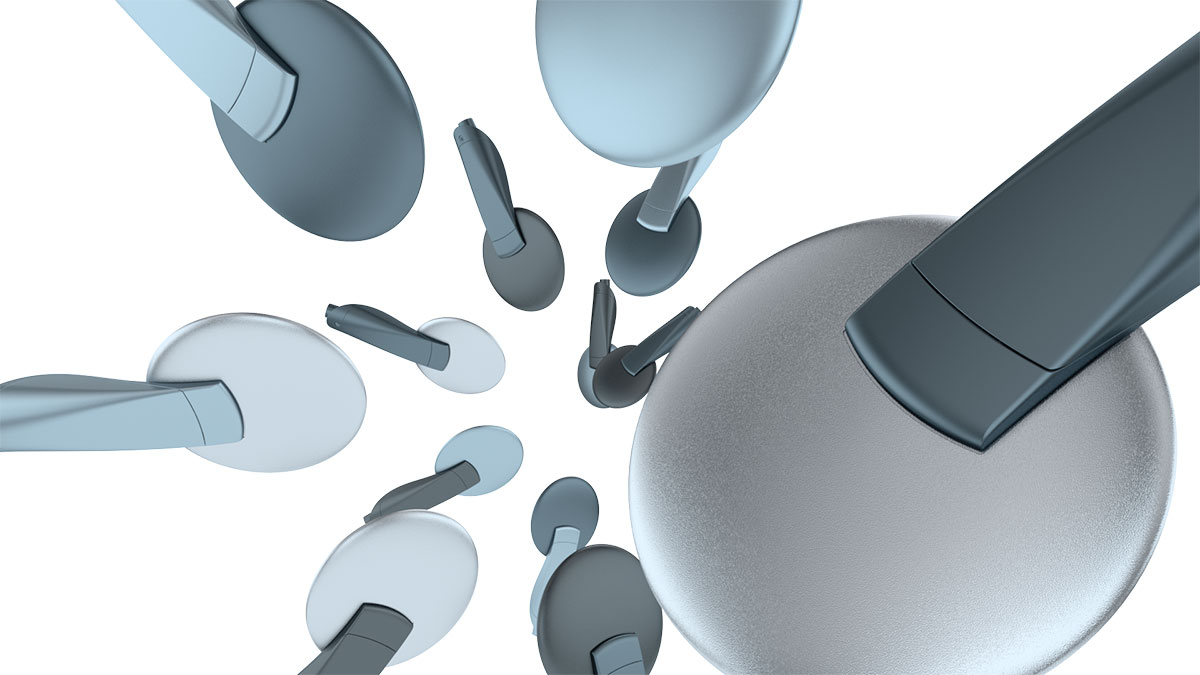

Various lighting arrangements

Ola offers a set of solutions, luminaires,universal mounting, poles and brackets
to create a multitude of lighting arrangements,in this way meeting the growing requirement for customised urban spaces.

Technical specifications

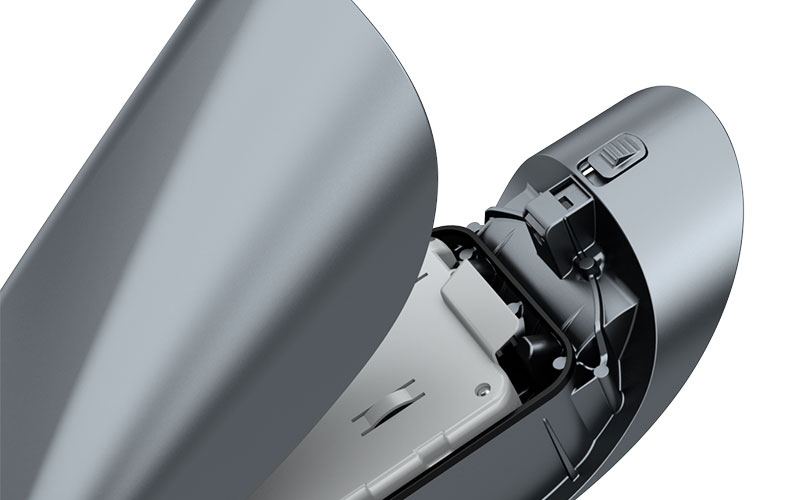

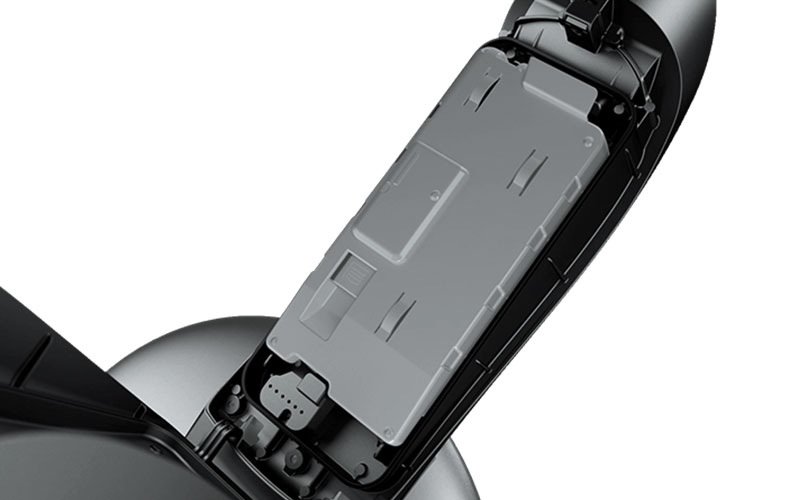

Cartridge type of gear compartment

All components and electronic devices in a plastic box, which can be removed and replaced on site.

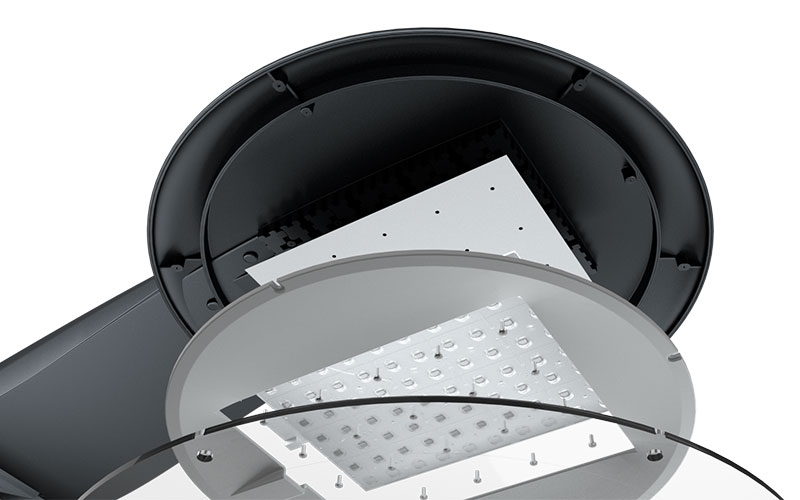

Optical module structure

Meet the lighting requirements of various projects.

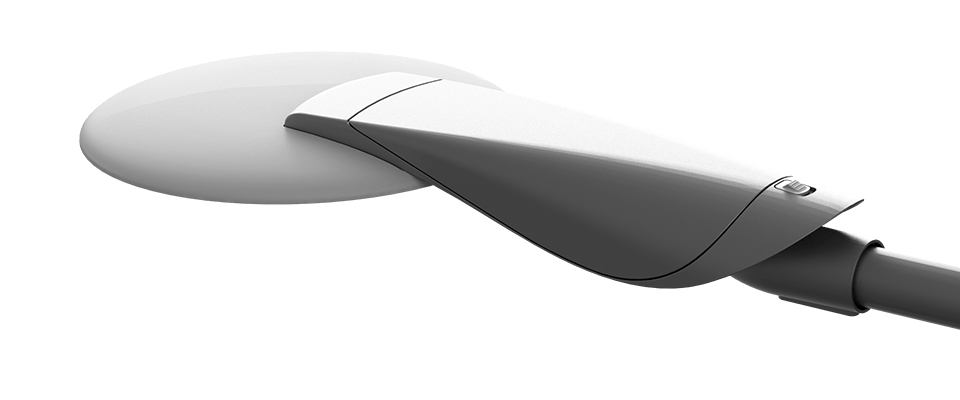

Pushbutton switch

Tool-free access to the gear compartment,the cover opens upwards to facilitate installation and maintenance operations.

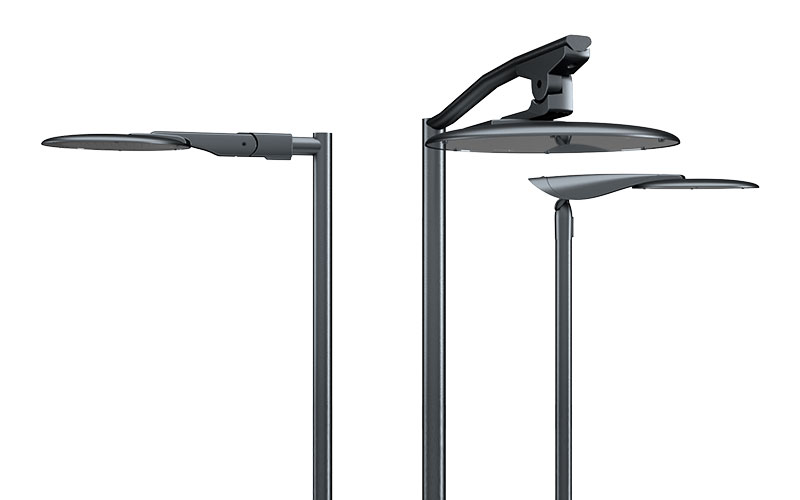

Universal mounting system

Post-top and side entry.

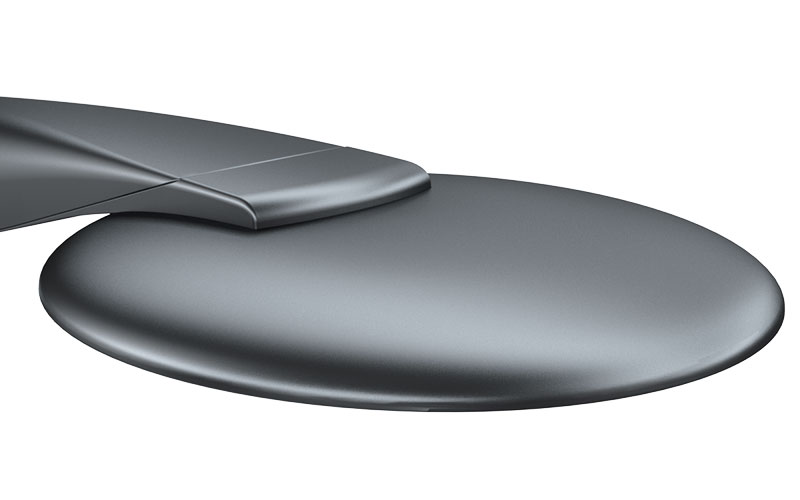

Materials and finishes

Soft and clean geometry without any technical roughness.
High-pressure die-casted aluminium, tempered flat glass.
Housing finishes: polyester powder coating.

Electrical and mechanical characteristics

IP 66 / Class I / Class II / Impact resistance: IK 09

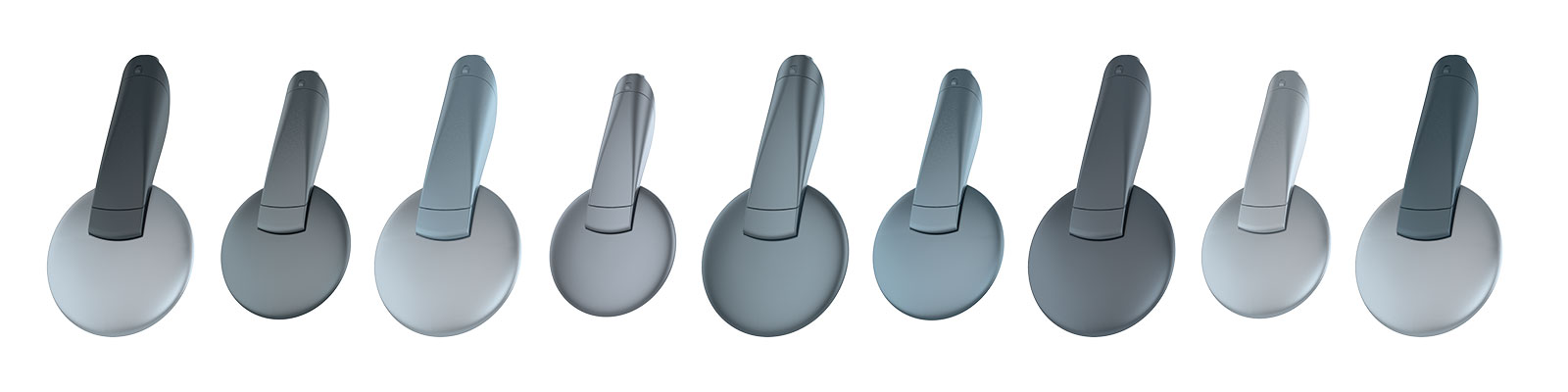

Variety of colors

As standard:one colour for both gear compartment and optical unit  Akzo grey 2900 sanded / RAL 7031 Blue grey / RAL 7035 Light grey / RAL 1013 Oyster White
Optional: bi-colour  RAL 7031 Blue grey + RAL 7035 Light grey (optical unit) / RAL 7016 Anthracite grey + RAL 7035 Light grey (optical unit) / RAL 7022 Umbra grey + RAL 7032 pebble grey (optical unit)
Any other RAL or Akzo colour on demand

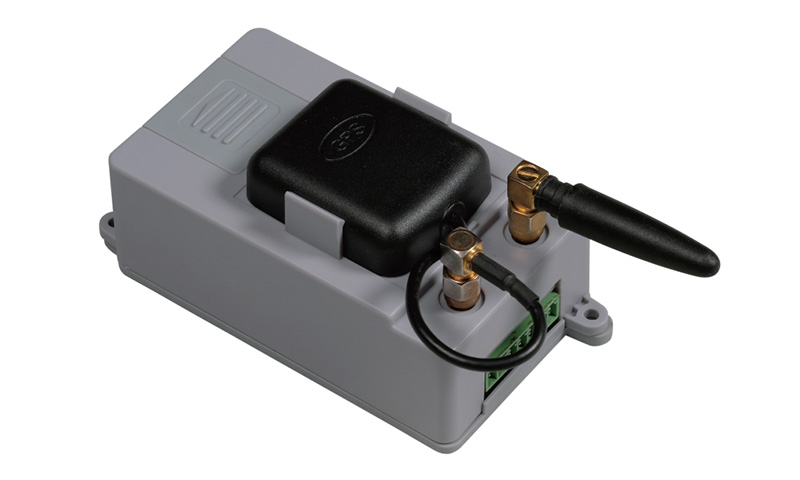

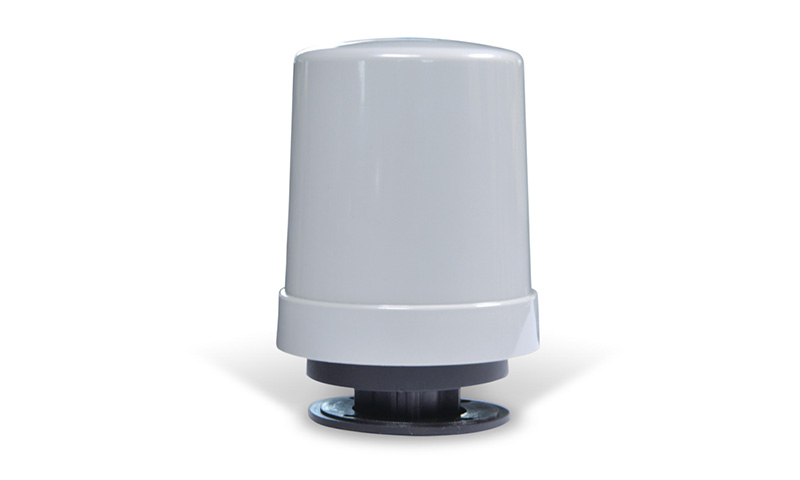

Intelligent controller

Technical features

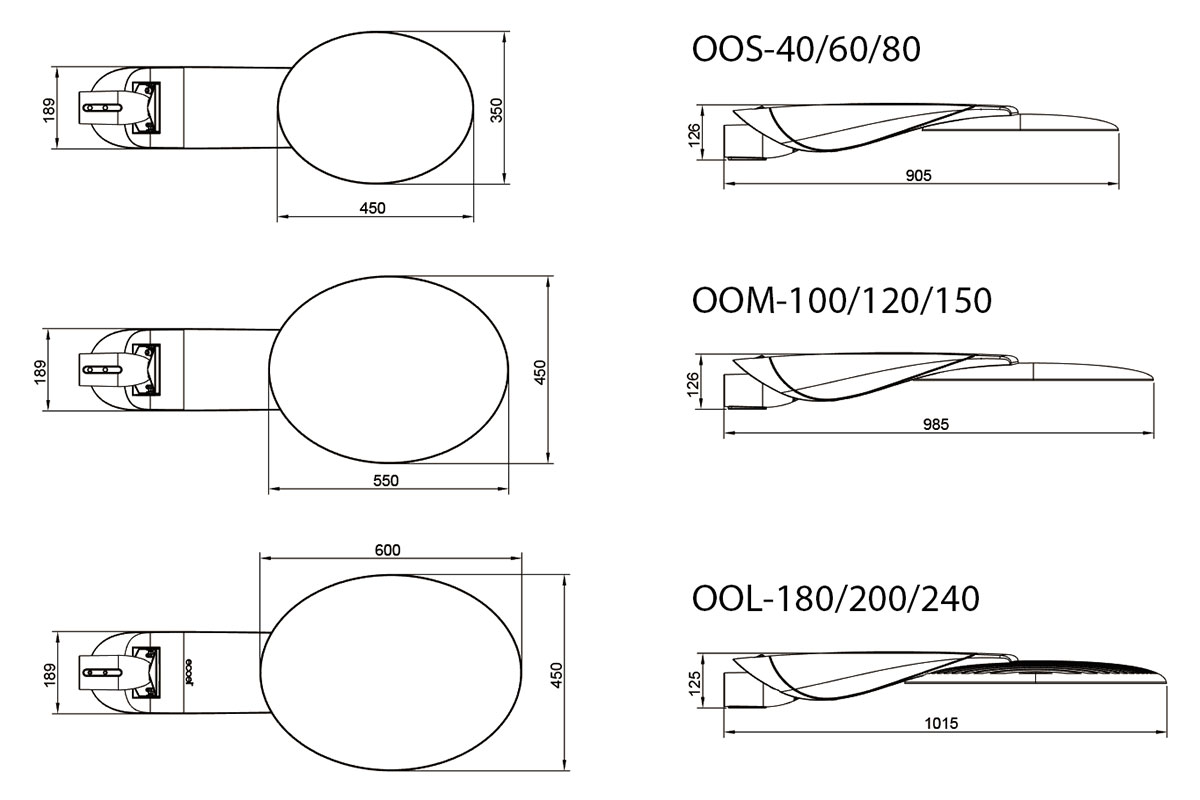

OlaOval
OlaOval
Product Code OOS-40/60/80 OOM-100/120/150 〇〇L180/200/240
Electric current 100/60 mA 100/60 m A 100/60 m A
LED quantity 16-58 leds 40-110 leds 72-200 leds
Rated power 40/60/80W±10% 100/120/150W±10% 180/200/240W±10%
Color temperature 3000K/4000K 3000K/4000K 3000K/4000K
Luminous flux 130lm/w, 150lm/w 130lm/w, 150lm/w 130lm/w, 150lm/w
ULOR (Upward light output ratio) 0% 0% 0%
Surge protection options 10kV 10kV 10kV
Input voltage AC100-277V AC100-277V AC100-277V
Frequency range 50/60HZ 50/60HZ 50/60HZ
Power factor >0.90 >0.95 >0.95
Color rendering index >70 >70 >70
Temperature of working condition -35-55°C -35-55°C -35-55°C
Humidity of working condition 10-90% 10-90% 10-90%
LED lifetime 70.000h 70.000h 70.000h
Installation pipe diameter Ø60mm Ø60mm Ø60mm
Installation height 6〜10m 8〜12m 8〜12m
Net weight 6.8kg 8.5kg 11.7kg

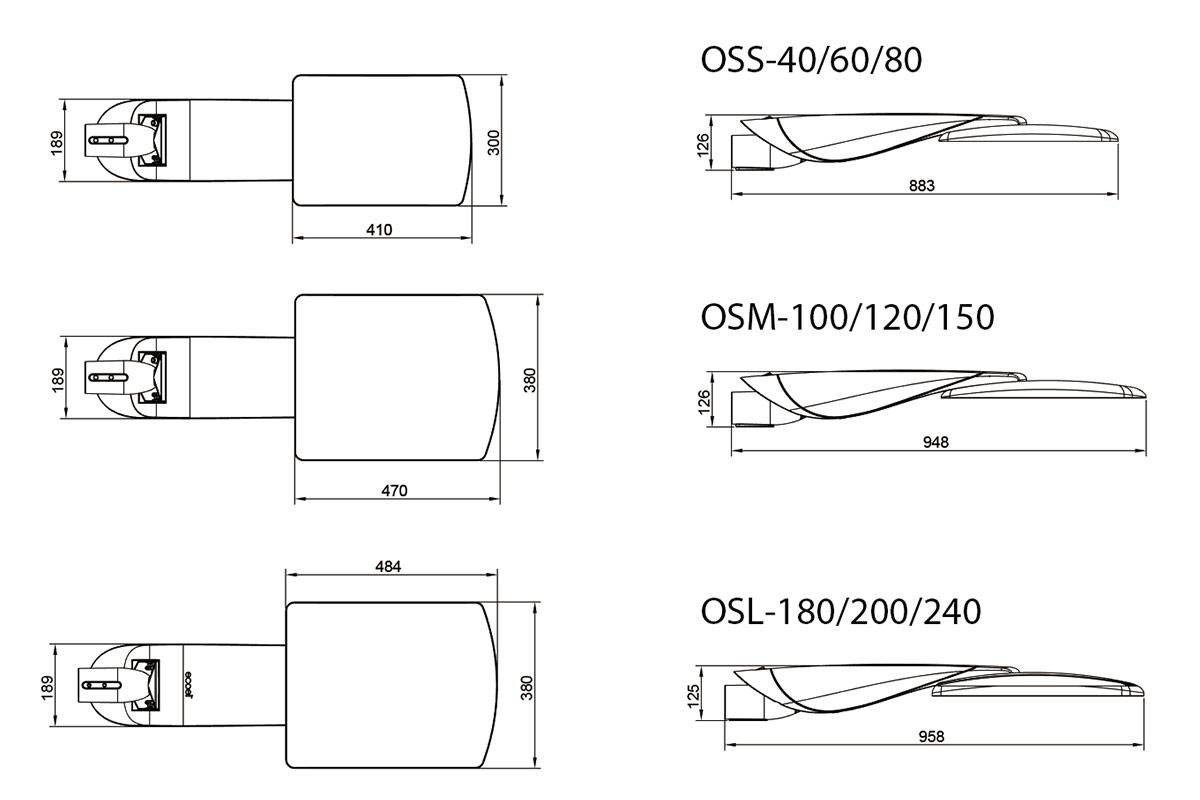

OlaRectangle
OlaRectangle
Product Code OSS-40/60/80 OSM-100/120/150 OSL-l 80/200/240
Electric current 100/60 mA 100/60 m A 100/60 m A
LED quantity 16-58 leds 40-110 leds 72-200 leds
Rated power 40/60/80W±10% 100/120/150W±10% 180/200W/240W±10°/〇
Color temperature 3000K/4000K 3000K/4000K 3000K/4000K
Luminous flux 130lm/w, 150lm/w 130lm/w, 150lm/w 130lm/w, 150lm/w
ULOR (Upward light output ratio) 0% 0% 0%
Surge protection options 10kV 10kV 10kV
Input voltage AC100-277V AC100-277V AC100-277V
Frequency range 50/60HZ 50/60HZ 50/60HZ
Power factor >0.90 >0.95 >0.95
Color rendering index >70 >70 >70
Temperature of working condition -35-55°C -35-55°C -35-55°C
Humidity of working condition 10-90% 10-90% 10-90%
LED lifetime 70.000h 70.000h 70.000h
Installation pipe diameter Ø60mm Ø60mm Ø60mm
Installation height 6〜10m 8〜12m 8〜12m
Net weight 7kg 8.1kg 12.2kg

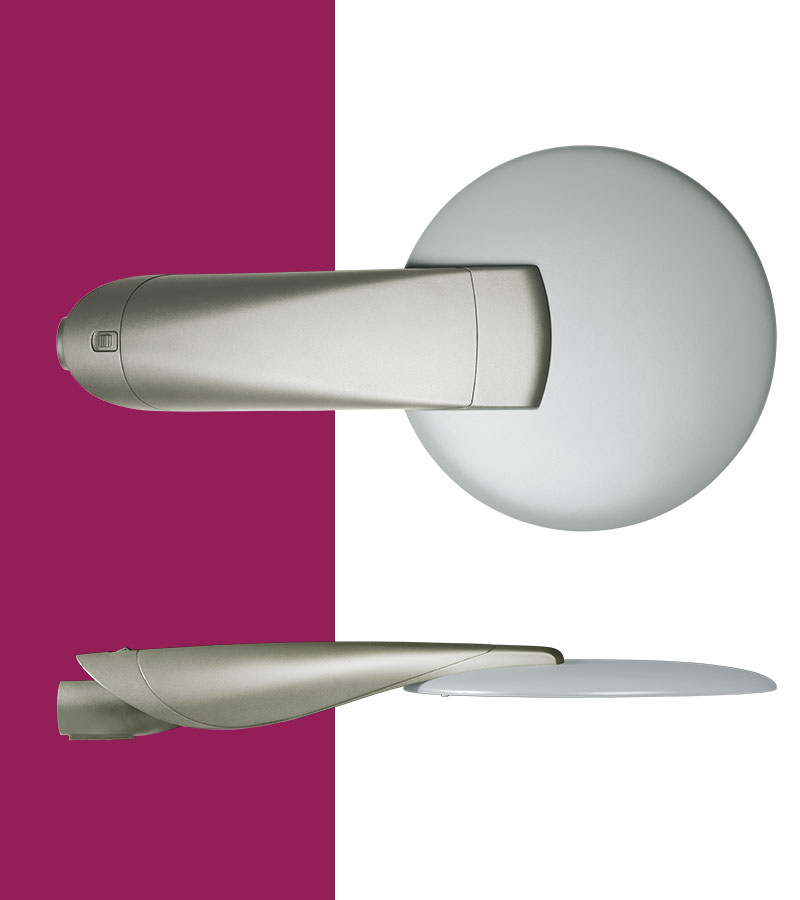

OlaRound
OlaRound

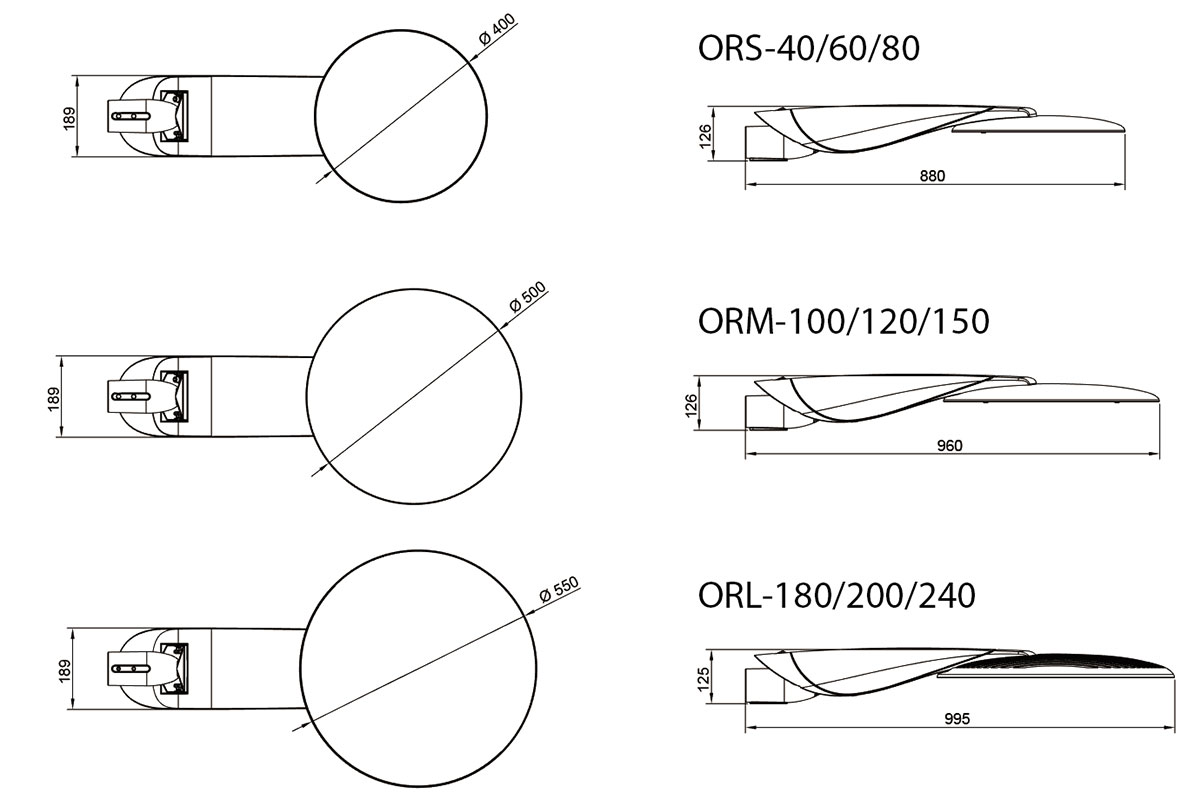

Product Code ORS-40/60/80 ORM-100/120/150 ORL-1 80/200/240
Electric current 100/60 mA 100/60 m A 100/60 m A
LED quantity 16-58 leds 40-110 leds 72-200 leds
Rated power 40/60/80W±10% 100/120/150W±10% 180/200/240W±10%
Color temperature 3000K/4000K 3000K/4000K 3000K/4000K
Luminous flux 130lm/w, 150lm/w 130lm/w, 150lm/w 130lm/w, 150lm/w
ULOR (Upward light output ratio) 0% 0% 0%
Surge protection options 10kV 10kV 10kV
Input voltage AC100-277V AC100-277V AC100-277V
Frequency range 50/60HZ 50/60HZ 50/60HZ
Power factor >0.90 >0.95 >0.95
Color rendering index >70 >70 >70
Temperature of working condition -35-55°C -35-55°C -35-55°C
Humidity of working condition 10-90% 10-90% 10-90%
LED lifetime 70.000h 70.000h 70.000h
Installation pipe diameter Ø60mm Ø60mm Ø60mm
Installation height 6〜10m 8〜12m 8〜12m
Net weight 6.6kg 9.2kg 12.2kg
