Configuration Parameters

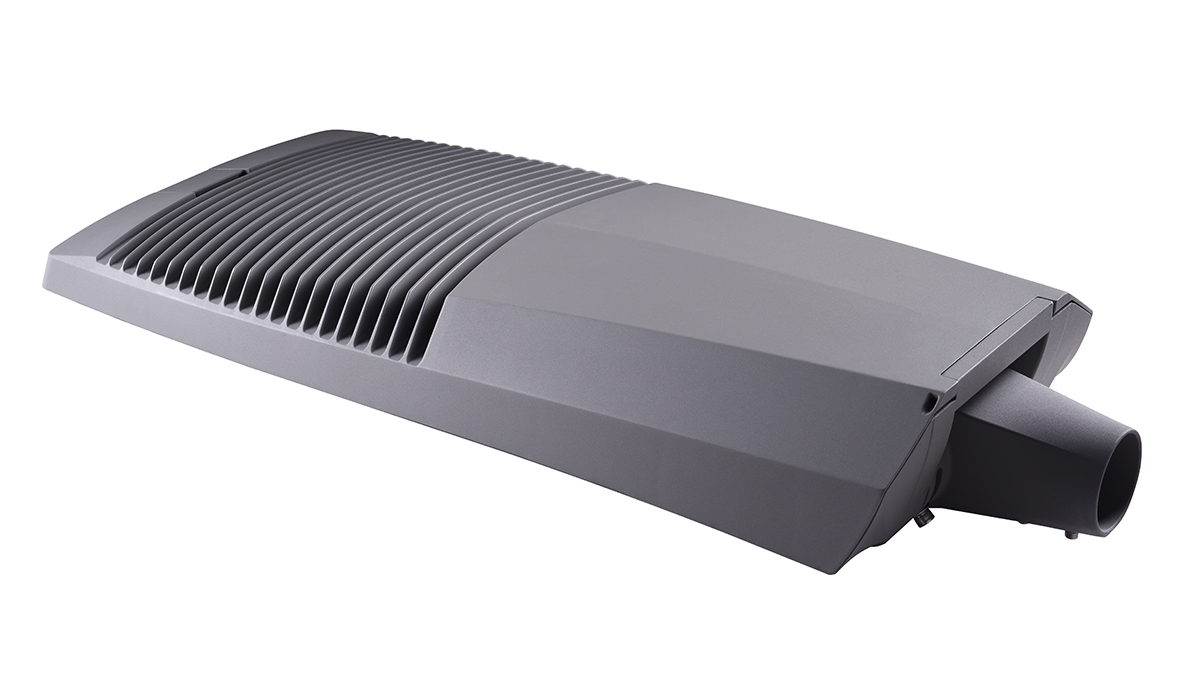

Wisdom2

Wisdom2


  • High strength aluminium alloy integrated die-casting shell, anti-impact grade IK09;
  • High transparency toughened glass, transmittance of 94.7%;
  • Modular optical lens, high transmittance, easy to upgrade the optical module, improve the versatility;

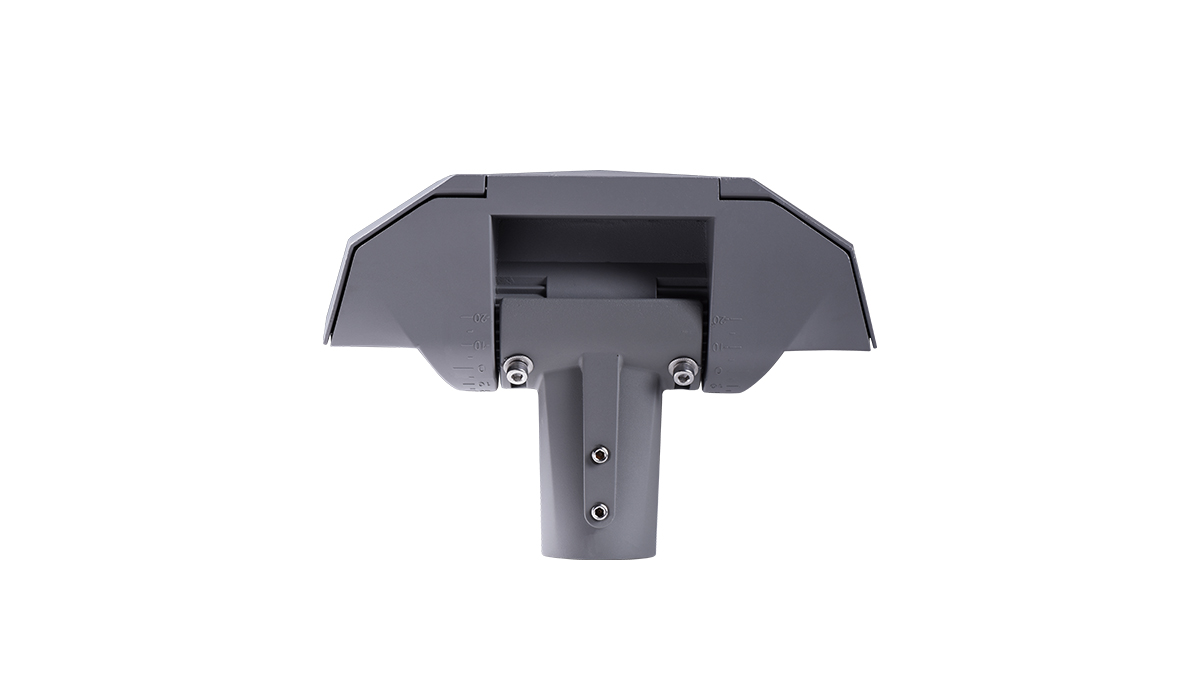

  • The single buckle type design cooperates with the guide rail support rod structure to facilitate the installation and maintenance of lamps and lanterns.
  • Design of automatic power-off device to improve maintenance convenience and safety;
  • With lightning protector, the grade can reach 10 kV and 10 kA, and the illumination angle of lamps can be adjusted from 0°-90°.

Single lamp control module (optional), lightning protector (optional)

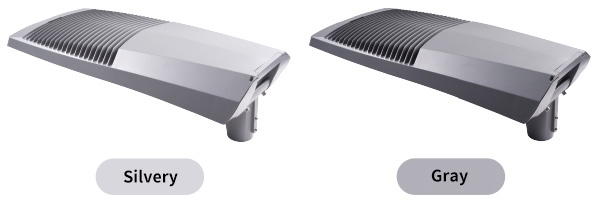

Color

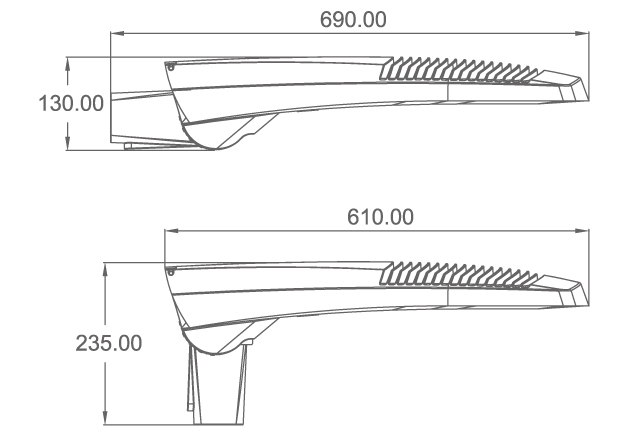

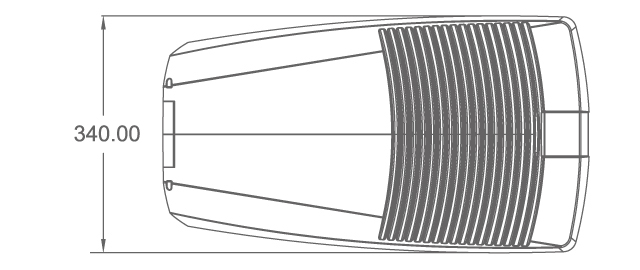

Size

Parameter

Product Model ECOEL-WISDOM2-60 ECOEL-WISDOM2-80 ECOEL-WISDOM2-100 ECOEL-WISDOM2-120
Current(mA) 700
Number of LED 28pcs 36pcs 48pcs 54pcs
Rated power 60W±10% 80W±10% 100W±10% 120W±10%
Color temperature 3000K
Initial luminous flux 7000lm 9200lm 11500lm 13800lm
Input Voltage AC 90~305V
Frequency Range 50/60Hz
Power Factor >0.95
Chromogenic index >70
Working environment temperature -35-50℃
Humidity of working environment 10-90%
LED life >50000h
Protection Level IP66
Installation Pipe Diameter Φ60mm
Installation Height 8-10m 8-10m 8-10m 8-12m
Net weight 11.2kg
Gross weight 12.6kg
Packing size 78*42*24cm

International certification

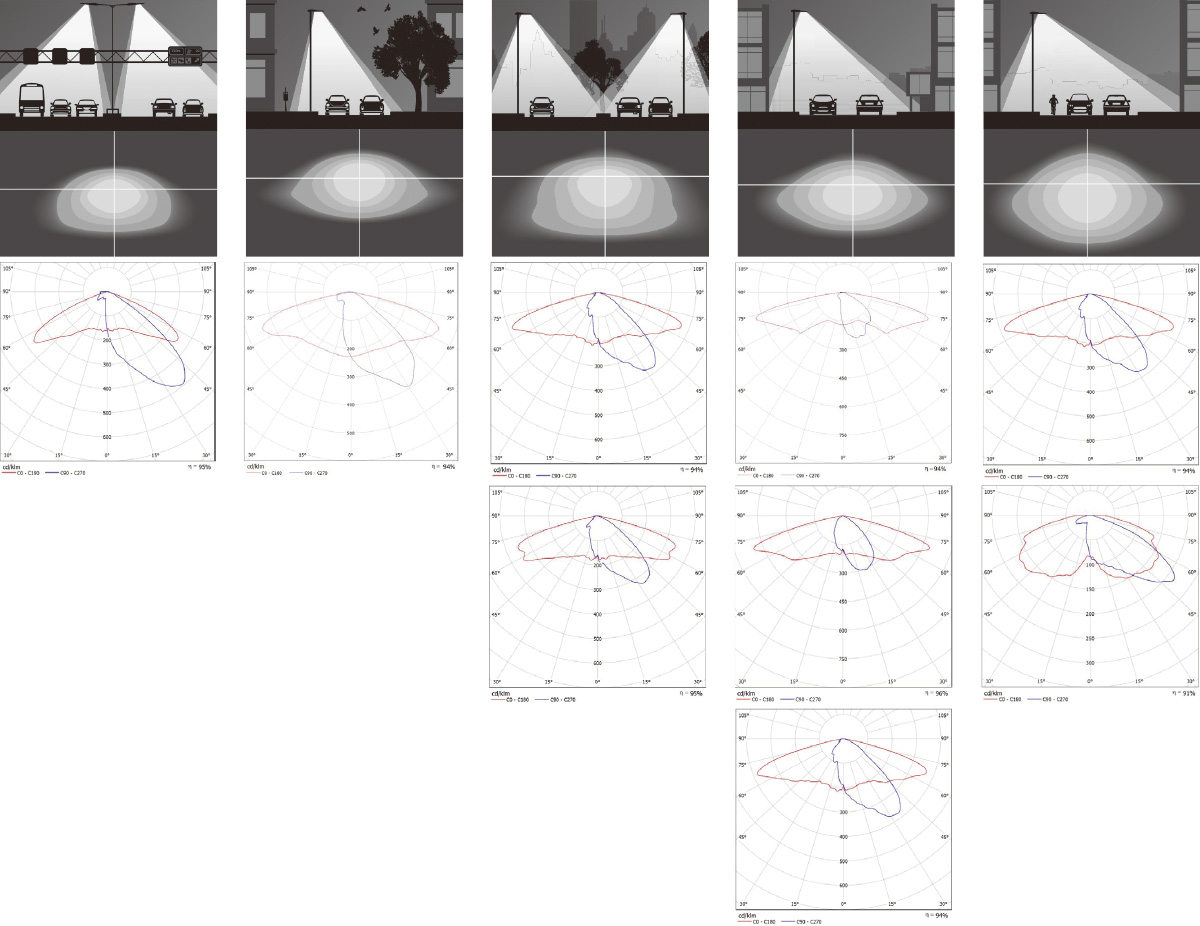

Light distribution design

The constraints of multi-level light and the scientific design of light distribution ensure the presentation of excellent lighting effects.

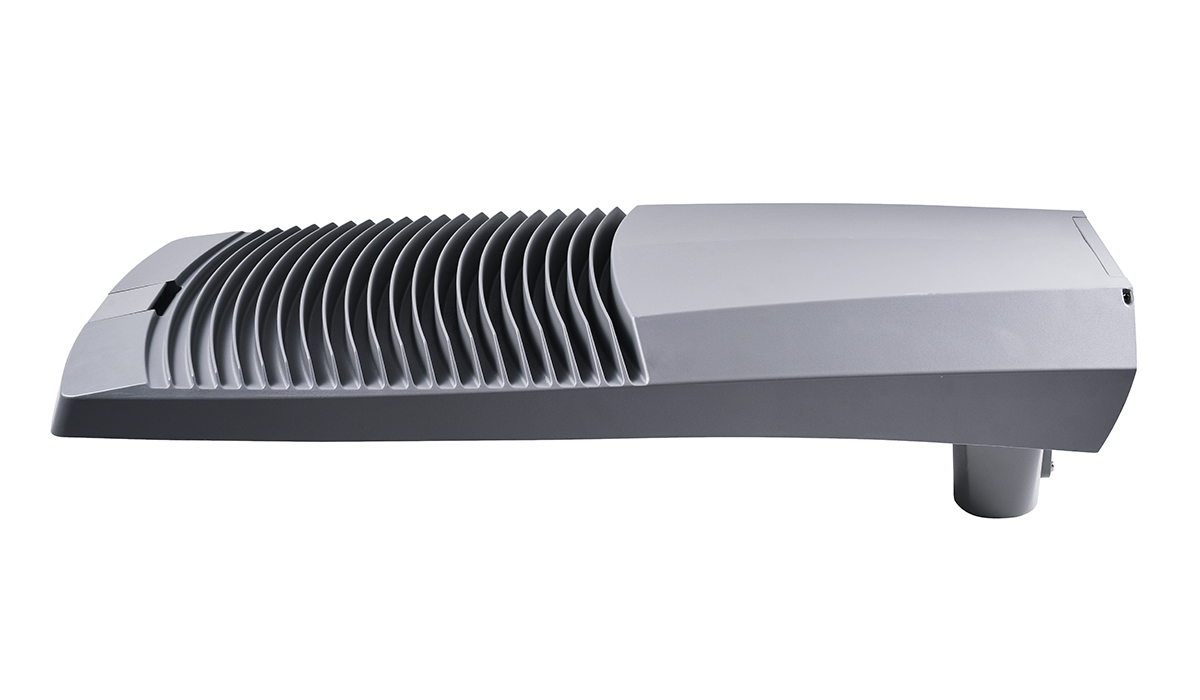

Wisdom1

Wisdom1


  • High strength aluminium alloy integrated die-casting shell, anti-impact grade IK09;
  • High transparency toughened glass, transmittance of 94.7%;
  • Modular optical lens, high transmittance, easy to upgrade the optical module, improve the versatility;
  • The single buckle type design cooperates with the guide rail support rod structure to facilitate the installation and maintenance of lamps and lanterns.
  • Design of automatic power-off device to improve maintenance convenience and safety;
  • With lightning protector, the grade can reach 10 kV and 10 kA, and the illumination angle of lamps can be adjusted from 0°-90°.

Single lamp control module (optional), lightning protector (optional)

Color

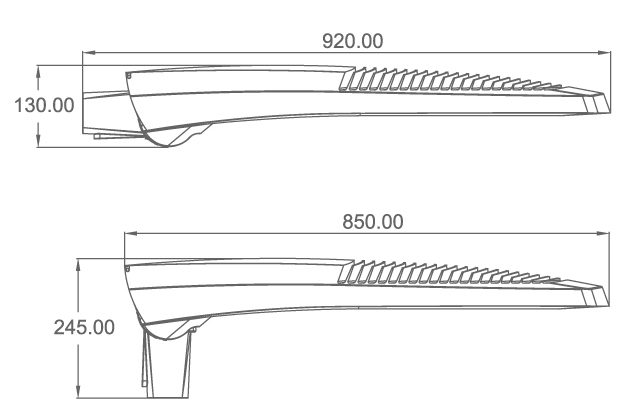

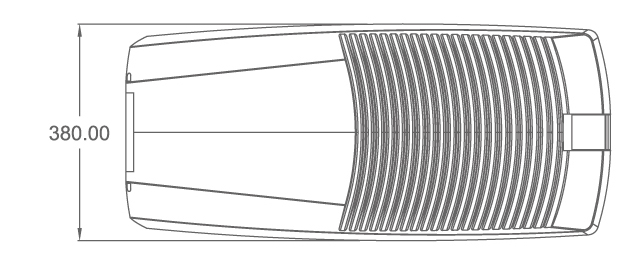

Size

Parameter

Product Model ECOEL-WISDOM1-150 ECOEL-WISDOM1-200 ECOEL-WISDOM1-240 ECOEL-WISDOM1-300
Current(mA) 700
Number of LED 72pcs 96pcs 108pcs 136pcs
Rated power 150W±10% 200W±10% 240W±10% 300W±10%
Color temperature 3000K
Initial luminous flux 17500lm 23000lm 27600lm 34500lm
Input Voltage AC 90~305V
Frequency Range 50/60Hz
Power Factor >0.95
Chromogenic index >70
Working environment temperature -35-50℃
Humidity of working environment 10-90%
LED life >50000h
Protection Level IP66
Installation Pipe Diameter Φ60mm
Installation Height 8-12m 10-14m 10-14m 10-14m
Net weight 15.8kg
Gross weight 17.7kg
Packing size 100*46*20cm

International certification

Light distribution design

The constraints of multi-level light and the scientific design of light distribution ensure the presentation of excellent lighting effects.
