SKYLINE

An integrated solution to urban complexity

Skyline is a lighting furniture particularly suited to illuminating the urban landscape,pedestrian areas and places of soft mobility.

Its modular design combines a variety of complementary lighting tools, including ambient and light beacon modules,information and communication modules,and technological elements for security and connectivity, all tailored to today’s needs and uses.

Modules are freely selected according to the requirements of each project, allowing for the creation of multiple lighting scenarios that combine different functionalities. Within a vertical architecture of curvilinear triangular cross-section, each component can be oriented along the three faces of the column. This concept ensures the dynamic coherence of each assembly within the urban space.

SKYLINE

An integrated solution to urban complexity

The concept

Skyline is a lighting furniture particularly suited to illuminating the urban landscape,pedestrian areas and places of soft mobility.

Its modular design combines a variety of complementary lighting tools, including ambient and light beacon modules,information and communication modules,and technological elements for security and connectivity, all tailored to today’s needs and uses.

Modules are freely selected according to the requirements of each project, allowing for the creation of multiple lighting scenarios that combine different functionalities. Within a vertical architecture of curvilinear triangular cross-section, each component can be oriented along the three faces of the column. This concept ensures the dynamic coherence of each assembly within the urban space.

The modules

m1

Basic Structure

  • The basic structure, with its curvilinear triangular cross-section, ensures the strength of the assemblies.
  • Different heights are available: 2000 mm, 3000 mm, and 4000 mm.
m2

Triple Arm Pole

  • This star-shaped cross-section structure adapts perfectly to the base structure. It allows projectors to be positioned freely along its three faces.
  • Three heights are available: 1000 mm, 1200 mm and 1500 mm.
m3

Trident

  • This conical structure with a star-shaped cross-
    section is positioned in line with the basic structure. It allows floodlights or luminaires to be freely positioned along its three faces.
  • Two heights are available: 1200 mm and 2000 mm.

Luminous Intensity Distribution Curves

Applications & visualization

(Click on the image to view the lamp shape)

Examples of omplete sets

pz1
pz1-x
  • Housing material
    Aluminium
  • Operating temperature (°C)
    -20 to 50°C
  • Lifetime (hours) @ 25°C
    50000H
  • Actual Power
    65W
  • Power/Displacement Power Factor
    PF>0.9
  • Color Temperature (K)
    4000K
  • Color Rendering Index
    ≥70
  • Standard Deviation Color Matching
    ≤5
  • Luminous Efficacy @ 4000K
    120 Lm/W
  • Luminous flux @ 25°C
    7800 Lm
  • IP Rating
    IP65
  • IK Rating
    Ik07
  • Rated Voltage/Frequency (V/Hz)
    100-240V, 50/60Hz
  • Standard color: RAL 7044
    Other colors available upon request
pz2
pz2-x
  • Housing material
    Aluminium
  • Operating temperature (°C)
    -20 to 50°C
  • Lifetime (hours) @ 25°C
    50000H
  • Actual Power
    70W (200W display)
  • Power/Displacement Power Factor
    PF>0.9
  • Color Temperature (K)
    4000K
  • Color Rendering Index
    ≥70
  • Standard Deviation Color Matching
    ≤5
  • Luminous Efficacy @ 4000K
    120 Lm/W
  • Luminous flux @ 25°C
    8400 Lm
  • IP Rating
    IP65
  • IK Rating
    Ik07
  • Rated Voltage/Frequency (V/Hz)
    100-240V, 50/60Hz
  • Standard color: RAL 7044
    Other colors available upon request
pz3
pz3-x
  • Housing material
    Aluminium
  • Operating temperature (°C)
    -20 to 50°C
  • Lifetime (hours) @ 25°C
    50000H
  • Actual Power
    90W
  • Power/Displacement Power Factor
    PF>0.9
  • Color Temperature (K)
    4000K
  • Color Rendering Index
    ≥70
  • Standard Deviation Color Matching
    ≤5
  • Luminous Efficacy @ 4000K
    120 Lm/W
  • Luminous flux @ 25°C
    10800 Lm
  • IP Rating
    IP65
  • IK Rating
    Ik07
  • Rated Voltage/Frequency (V/Hz)
    100-240V, 50/60Hz
  • Standard color: RAL 7044
    Other colors available upon request
pz4
pz4-x
  • Housing material
    Aluminium
  • Operating temperature (°C)
    -20 to 50°C
  • Lifetime (hours) @ 25°C
    50000H
  • Actual Power
    95W
  • Power/Displacement Power Factor
    PF>0.9
  • Color Temperature (K)
    4000K
  • Color Rendering Index
    ≥70
  • Standard Deviation Color Matching
    ≤5
  • Luminous Efficacy @ 4000K
    120 Lm/W
  • Luminous flux @ 25°C
    11400 Lm
  • IP Rating
    IP65
  • IK Rating
    Ik07
  • Rated Voltage/Frequency (V/Hz)
    100-240V, 50/60Hz
  • Standard color: RAL 7044
    Other colors available upon request
pz5
pz5-x
  • Housing material
    Aluminium
  • Operating temperature (°C)
    -20 to 50°C
  • Lifetime (hours) @ 25°C
    50000H
  • Actual Power
    60W
  • Power/Displacement Power Factor
    PF>0.9
  • Color Temperature (K)
    4000K
  • Color Rendering Index
    ≥70
  • Standard Deviation Color Matching
    ≤5
  • Luminous Efficacy @ 4000K
    120 Lm/W
  • Luminous flux @ 25°C
    7200 Lm
  • IP Rating
    IP65
  • IK Rating
    Ik07
  • Rated Voltage/Frequency (V/Hz)
    100-240V, 50/60Hz
  • Sensor Mode
    Radar sensing mode
  • Standard color: RAL 7044
    Other colors available upon request
pz6
pz6-x
  • Housing material
    Aluminium
  • Operating temperature (°C)
    -20 to 50°C
  • Lifetime (hours) @ 25°C
    50000H
  • Actual Power
    100W
  • Power/Displacement Power Factor
    PF>0.9
  • Color Temperature (K)
    4000K
  • Color Rendering Index
    ≥70
  • Standard Deviation Color Matching
    ≤5
  • Luminous Efficacy @ 4000K
    120 Lm/W
  • Luminous flux @ 25°C
    12000 Lm
  • IP Rating
    IP65
  • IK Rating
    Ik07
  • Rated Voltage/Frequency (V/Hz)
    100-240V, 50/60Hz
  • Sensor Mode
    Radar sensing mode
  • Standard color: RAL 7044
    Other colors available upon request

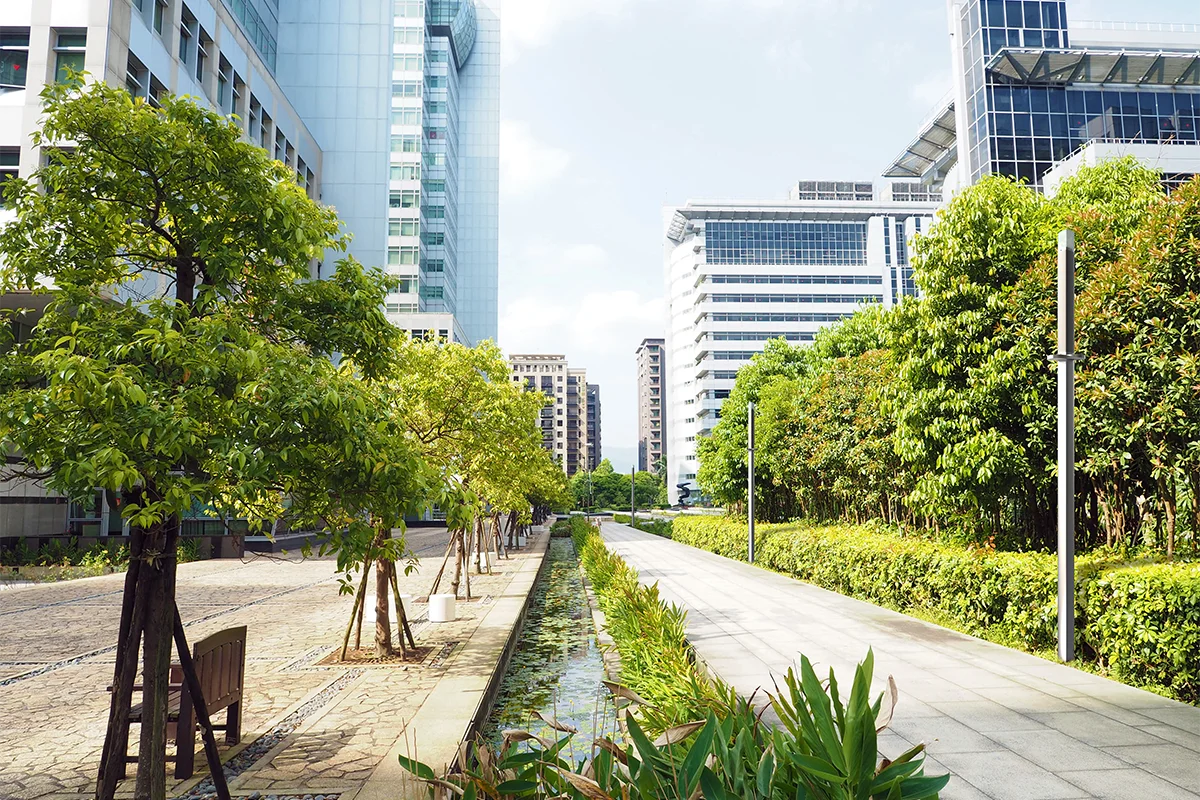

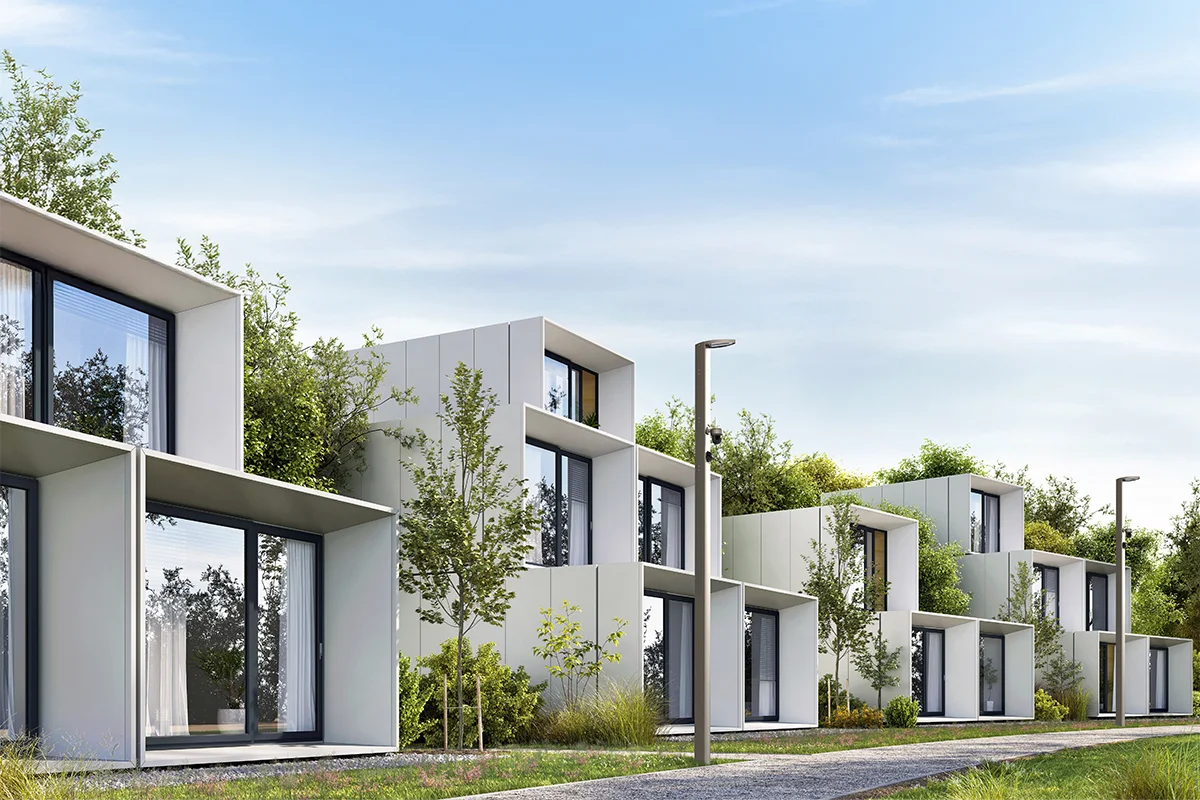

In the city
